This is a fully automated Active directory Lab made with the purpose to reduce the hustle of creating it manually.
Lab Overview 💻#
This lab is themed after TV series Mr. Robot :) This is a fully automated Active Directory Lab made with the purpose of reducing the hassle of creating it manually. It uses Vagrant and Powershell Scripts to automate stuff. It also contain a small CTF kind of senerio.
Lab preinstalled#
- Active directory Services.
- Chocholotary ( firefox, 7zip, Notepad++ ).
- Internal Network (for Tunnelling practice).
- sysinternals installed on every system.
Installation Script by @Lavender-exe#
separately ⚠ Tested on Ubuntu LTS 22.04
chmod +x install-expose.sh
sudo ./install-expose.sh
Manual Installation#
Installation Dependencies 📋#
Virtual Box#
Latest Version https://www.virtualbox.org/wiki/Downloads
For version 6.1 https://www.virtualbox.org/wiki/Download_Old_Builds_6_1
General update of the system#
sudo apt-get update
sudo apt-get install -y linux-headers-generic
Vagrant Installation#
Linux ( Debian )
wget -O- https://apt.releases.hashicorp.com/gpg | gpg --dearmor | sudo tee /usr/share/keyrings/hashicorp-archive-keyring.gpg
echo "deb [signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
sudo apt update && sudo apt install vagrant
Windows & Other Operating Systems
visit https://developer.hashicorp.com/vagrant/downloads
Installing plugins#
vagrant plugin install vagrant-windows-sysprep

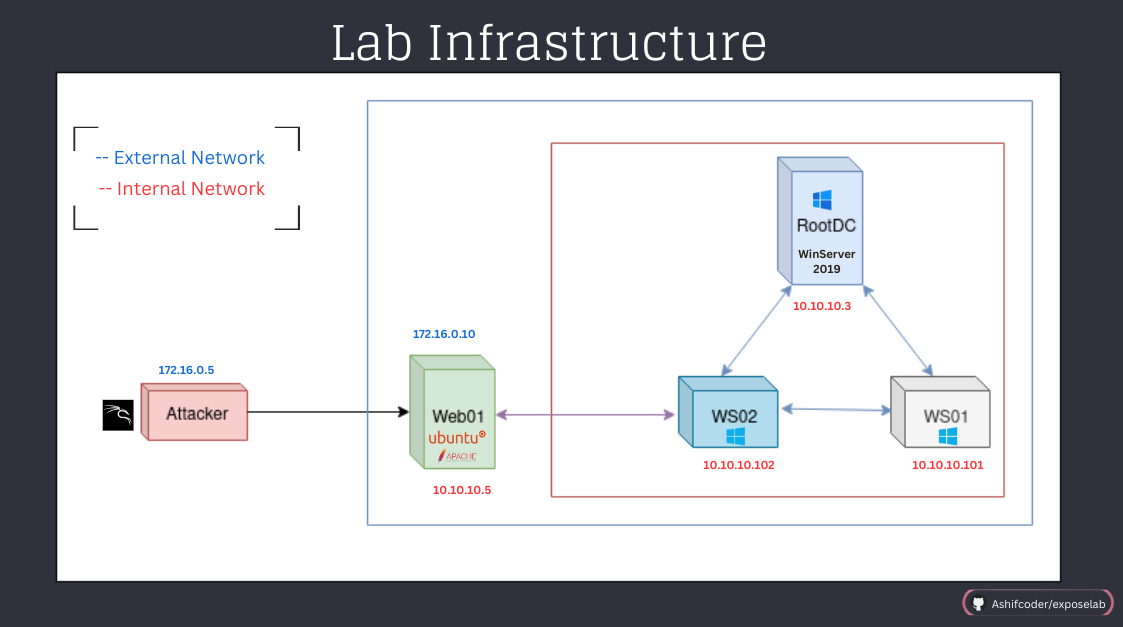

Building the lab Infrastructure#
Build will take approximately ⏳
- Starting form scratch
2hr. - If the vagrant images are already downloaded
50 min. ( Grab a Coffee! ☕️ )
Vagrant Cloud Images used
# Vulnerable Web Server Machine [Ubuntu]
chrislentz/trusty64-lamp
# Domain Controller [Windows Server 2019]
rgl/windows-server-2019-standard-amd64
# Client Machies [Windows 10]
rgl/windows-10-1809-enterprise-amd64
Video Tutorial 📹#
- Step by Step Installaion of the lab + code Explatation
- Solving the Mini CTF Challange!
Making the lab
git clone https://github.com/Ashifcoder/exposelab.git
cd exposelab
vagrant up
Note: If IP address configuration allowed range Error occurs. Run the commands from the network troubleshooting section below.
Default Credentials#
vagrant : vagrant
Other Users on the Lab
| User | Machine |
|---|---|
| mrrobot | RootDC |
| Angela | WebServer |
| Darlene | Windows Client 1 |
| Tyrell | Windows Client 2 |
| Elliot | N0t-F0uND |
Thing can be done manually#
Run the remove-vagrant.ps1 as a Different user not as vagrant
or
Run the commands Manually
#-----------manually Command to run -----------
# Write Manually to disable the network of vagrant
Write-Host -ForegroundColor Green [-] Disabling the vagrent Network on the machine [-]
Get-NetAdapter ; Disable-NetAdapter -Name 'Ethernet' -Confirm:$False ; Write-Host -ForegroundColor Green "[+] Enabled" ; Get-NetAdapter
# Write Manually to remove the vagrant user from the system
Write-Host -ForegroundColor Green [-] Removing Vagrant User [-]
Remove-LocalUser -Name 'vagrant'
To remove the virtualBox Boxes#
vagrant destroy
Troubleshooting ⚒#
Network Troubleshooting
Setting virtual box Networks
sudo vim /etc/vbox/networks.conf
Should contain
* 10.0.0.0/8 192.168.0.0/16 195.0.0.0/8 172.16.0.0/8
* 2001::/64
Disclaimer:#
All the code provided on this repository is for educational/research purposes only. Any actions and/or activities related to the material contained within this repository is solely your responsibility. The misuse of the code in this repository can result in criminal charges brought against the persons in question. Author will not be held responsible in the event any criminal charges be brought against any individuals misusing the code in this repository to break the law.
GPL V3 License#
Honourable Mentions#
- Video which inspried me : https://www.youtube.com/watch?v=HfOfbMXCQGM
- The Auror Project : https://github.com/chr0n1k/Auror-Project
- Website Landing page : https://github.com/Alanaktion/php-landing
